USTC-F/H 9.8mmx 9.8mm Flat/Rectangular Nylon Serving Copper Litz Wire For Transformer

Informations de base

Lieu d'origine:	Chine
Nom de marque:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Numéro de modèle:	USTC

Quantité de commande min:	50 kg
Prix:	Négociable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	15 jours ouvrables
Conditions de paiement:	T/T/Paypal
Capacité d'approvisionnement:	Satisfaire votre demande

meilleur prix Contactez

Détail Infomation

Diamètre:	0,08 mm	Température:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conducteur:	Cuivre
Brins:	9100	Tension de claquage:	Min.500
Matériau de couverture:	Nylon	Mot clé:	Fil de Litz en cuivre plat en nylon USTC-F/H 0,08 mm x 9100 pour transformateur
Mettre en évidence:	flat rectangular nylon litz wire , copper litz wire for transformer , 9.8mm ustc litz wire

Description de produit

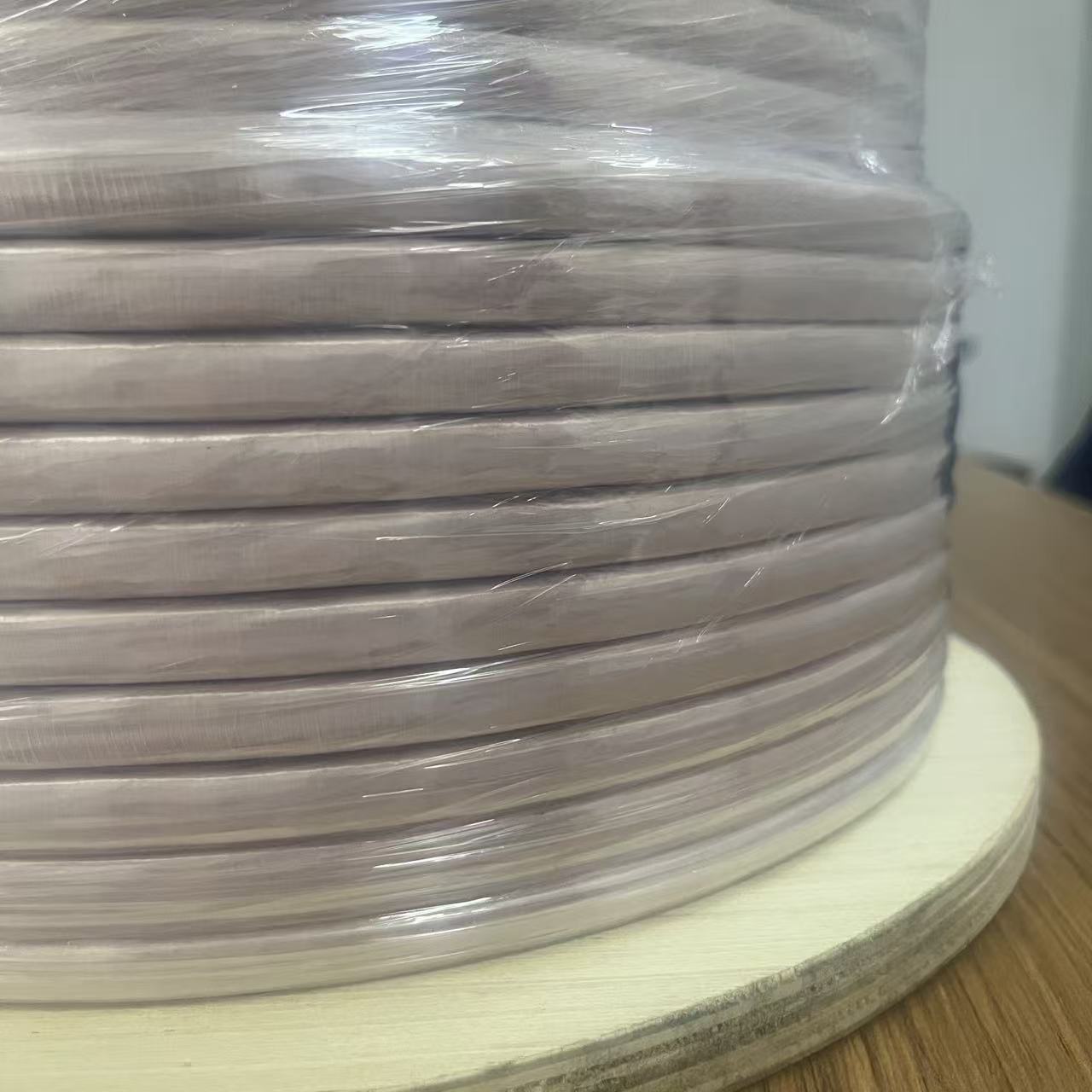

USTC-F/H 9.8mm x 9.8mm Flat/Rectangular Nylon Serving Copper Litz Wire For Transformer

Our custom flat silk-covered litz wire is engineered for high-frequency, high-current applications where efficiency and reliability are critical. This specialized litz wire is constructed from 9,100 individually enameled strands, each with a diameter of 0.08 mm, twisted together to form a compact bundle.

Key Features

Flat pressed shape: 9.9 mm width × 8.8 mm thickness after pressing
Maximizes copper fill factor in rectangular winding windows
Improves power density and thermal management
9,100 individually enameled strands of 0.08 mm diameter
Ideal for high-frequency transformers and custom inductors
Custom dimensions and strand counts available upon request

Technical Specifications

Item	Single Wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Technical Requirement	0.087-0.103	0.08±0.003	9.90±0.25	9.80±0.25	≤0.000440	≥500	130±20
Sample 1	0.090-0.092	0.077-0.080	9.65-10.10	9.70-10.00	0.000388	680	130

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
