Aperçu > Produits> Fil d'Ustc Litz> 0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
Informations de base
Lieu d'origine: Chine
Nom de marque: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Numéro de modèle: USTC
Quantité de commande min: 50 kg
Prix: Négociable
Détails d'emballage: Bobine avec carton
Délai de livraison: 15 jours ouvrables
Conditions de paiement: T/T/Paypal
Capacité d'approvisionnement: Satisfaire votre demande
meilleur prix Contactez
Détail Infomation
Diamètre: 0,1 mm Température: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conducteur: Cuivre
Brins: 300 Tension de claquage: Min.1100
Matériau de couverture: Nylon Mot clé: Fil de cuivre recouvert de soie de fil d'aimant émaillé par fil à haute fréquence de 0.1mm
Mettre en évidence:

0.1mm enameled magnet wire

,

high frequency Litz wire

,

silk covered copper wire

Description de produit

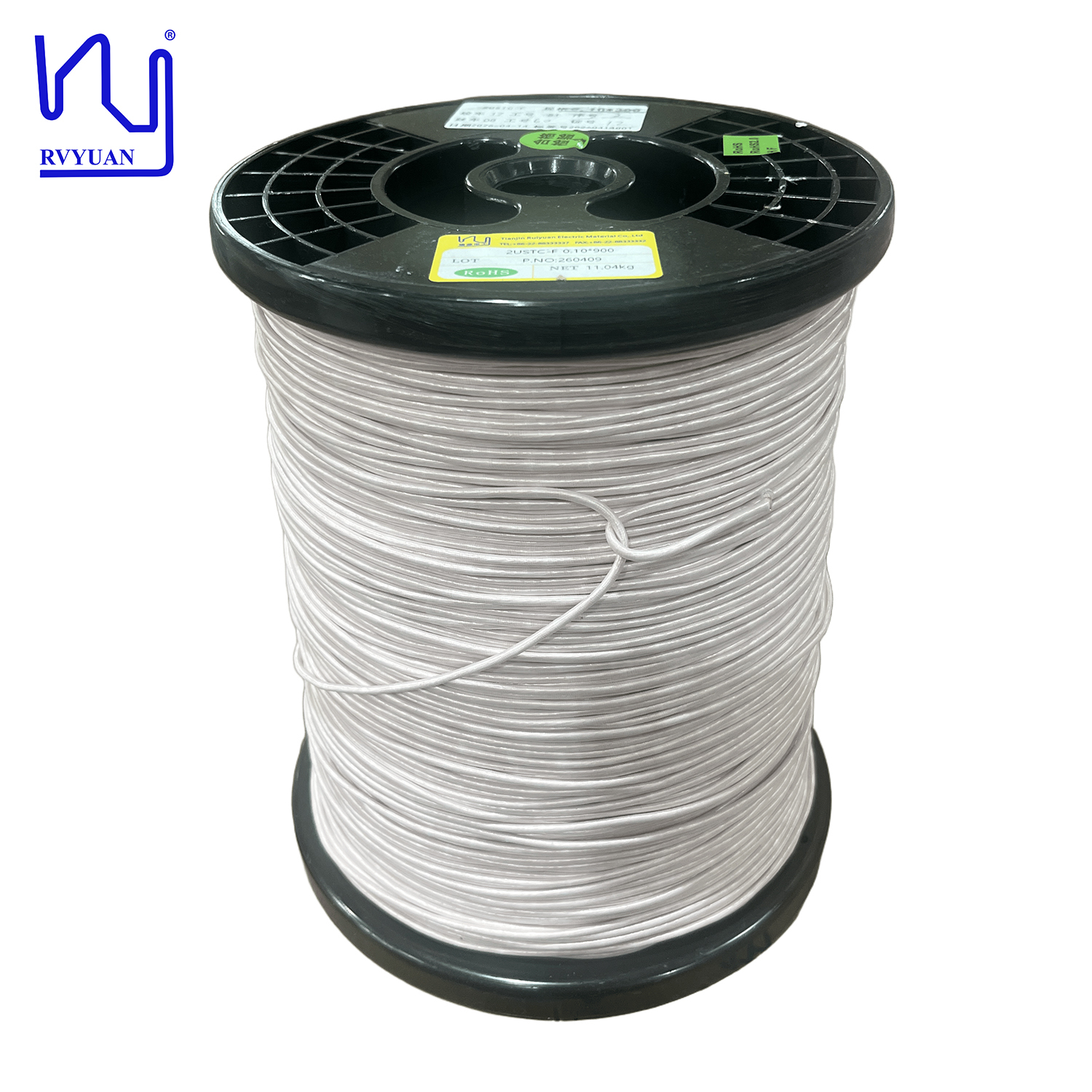

0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire
This silk covered litz wire features a maximum overall diameter of 2.65 mm and a minimum withstand voltage of 1100 V. We support small-batch customization with a minimum order quantity of 20 kg, making it ideal for prototype development or specialized production runs.
Key Features
  • High frequency performance for specialized applications
  • Silk covered construction for enhanced durability
  • Minimum withstand voltage: 1100V
  • Maximum overall diameter: 2.65mm
  • Small-batch customization available
  • Minimum order quantity: 20kg
Technical Specifications
Parameter Technical Requirement Sample 1 Sample 2
Outer diameter of single wire (mm) 0.107-0.125 0.110 0.113
Conductor diameter (mm) 0.10±0.003 0.098 0.100
Overall diameter (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole test (faults/6m) 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
0.1mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.

Produit Tag:

individu collant le toron mince,

toron mince émaux,

toron mince de 40 A.W.G.
