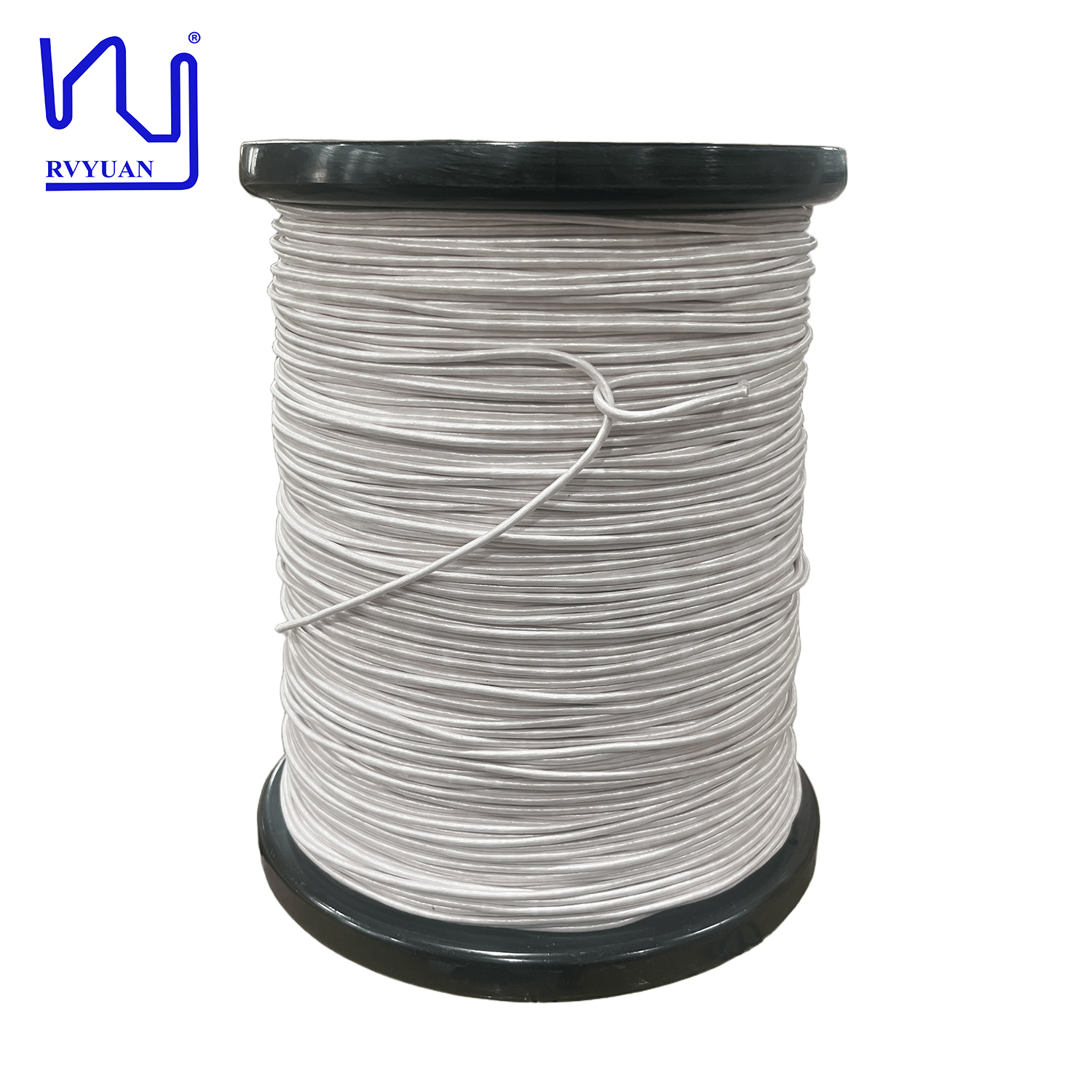

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
Informations de base
Lieu d'origine: Chine
Nom de marque: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Numéro de modèle: USTC
Quantité de commande min: 50 kg
Prix: Négociable
Détails d'emballage: Bobine avec carton
Délai de livraison: 15 jours ouvrables
Conditions de paiement: T/T/Paypal
Capacité d'approvisionnement: Satisfaire votre demande
meilleur prix Contactez
Détail Infomation
Diamètre: 0,1 mm Température: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conducteur: Cuivre
Brins: 300 Tension de claquage: Min.1100
Matériau de couverture: Nylon Mot clé: Fils enduits de soie à haute fréquence de fil de Litz du fil 0.1x300Multi de 2USTC pour le transform
Mettre en évidence:

high frequency litz wire

,

silk coated litz wire

,

multi strand transformer wire

Description de produit

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires
This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.
Key Applications & Benefits
  • Ideal for transformer windings in high-frequency power conversion circuits
  • Reduces AC resistance for improved energy efficiency
  • Minimizes heat generation in demanding applications
  • Nylon serving provides abrasion resistance and electrical isolation
  • Compact diameter enables higher packing density in transformer cores
  • Excellent voltage rating ensures reliable performance
Technical Specifications
Item Tech Requirement Sample 1 Sample 2
Diameter of Single Wire (mm) 0.107-0.125 0.110 0.113
Conductor Diameter (mm) 0.10±0.003 0.098 0.100
OD (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown Voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole Test 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
