Flat litz wire 4.5mmx4.4mm 0.05mmx4875 nylon serving copper litz wire For Transformer

Informations de base

Lieu d'origine:	Chine
Nom de marque:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Numéro de modèle:	USTC

Quantité de commande min:	20 kg
Prix:	Négociable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	15 jours ouvrables
Conditions de paiement:	T/T/Paypal
Capacité d'approvisionnement:	Satisfaire votre demande

meilleur prix Contactez

Détail Infomation

Diamètre:	0,05 mm	Température:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conducteur:	Cuivre
Brins:	4875	Tension de claquage:	Min.500
Matériau de couverture:	Nylon	Mot clé:	Fil de litz plat en nylon, 4.5mm x 4.4mm, 0.05mm x 4875, fil de cuivre pour transformateur
Mettre en évidence:	flat litz wire for transformer , 4.5mmx4.4mm nylon serving litz wire , copper litz wire with nylon serving

Description de produit

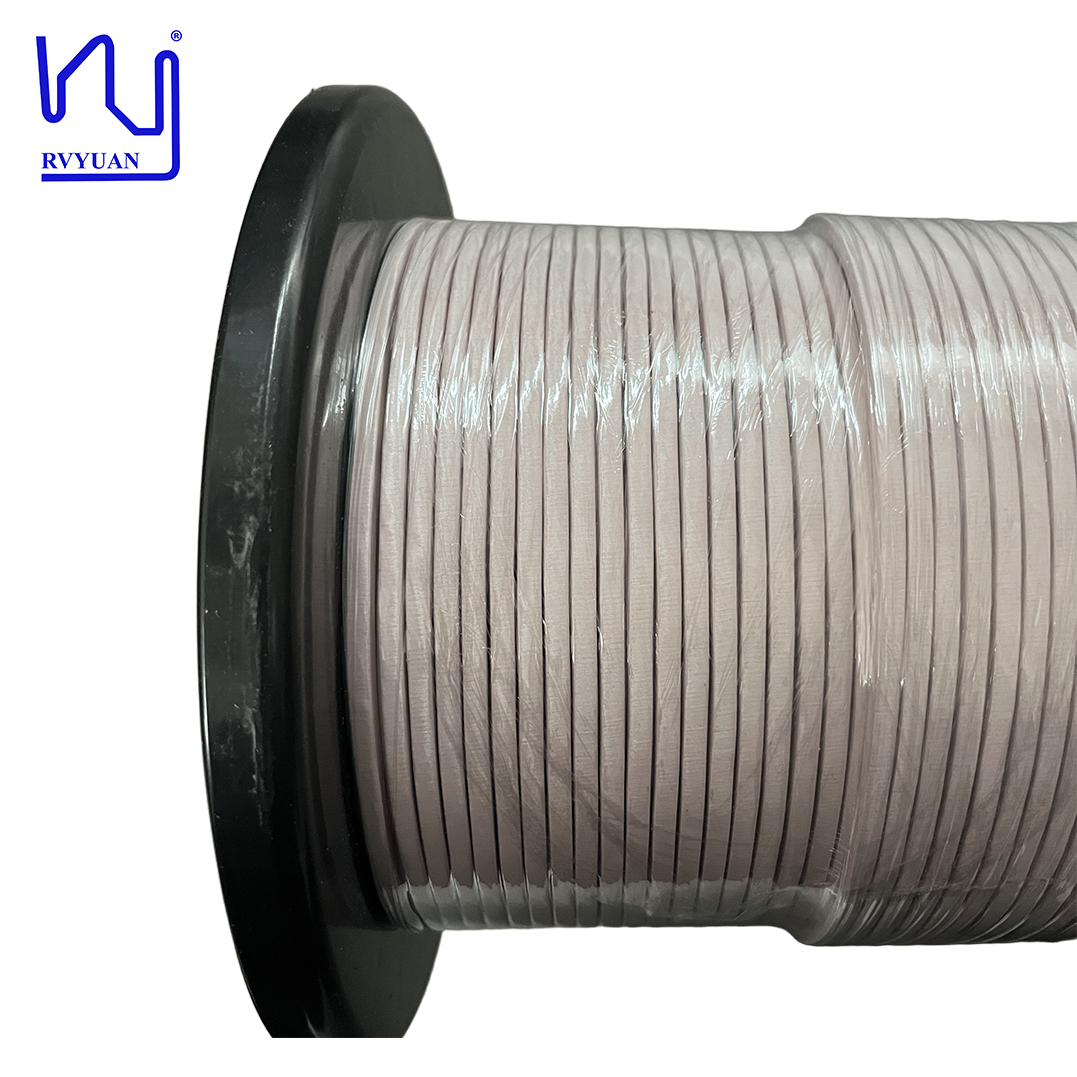

Flat Litz Wire 4.5mm×4.4mm 0.05mm×4875 Nylon Serving Copper Litz Wire for Transformer

This is a custom-designed flat nylon serving litz wire, engineered for high-performance applications where space and efficiency are critical. As a large-scale product, it features a finished outer diameter with a width of 4.5 mm and a thickness of 4.4 mm, offering a substantial cross-sectional area while maintaining a flat profile.

Technical Specifications

Type Conductor diameter*Strand number	2USTC-H 0.054875(4.54.4)
Single wire (strand)	Conductor diameter (mm): 0.050±0.003
Overall diameter (mm)	0.055-0.069
Thermal Class (°C)	180

Strands Construction

Strands Number	First Time	39
	Second Time	39×5
	Third Time	39×5×5
	Fourth Time	39×5×5×5

Pitch Specifications

Pitch (mm)	First Time	16±8
	Second Time	25±10
	Third Time	35±10
	Fourth Time	65±10
Bunching Direction	S/S/S/S

Insulation Layer

Material Type	Nylon
Material Specs (mm×mm or D)	/
Times of Wrapping	1
Overlap (%) or Thickness (mm), Mini	0.045
Wrapping Direction	Z

Characteristics

Width (mm)	4.5±0.2
Thickness (mm)	4.4±0.2
Max Resistance (Ω/Km at 20°C)	2.227
Breakdown Voltage Mini (V)	500

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
