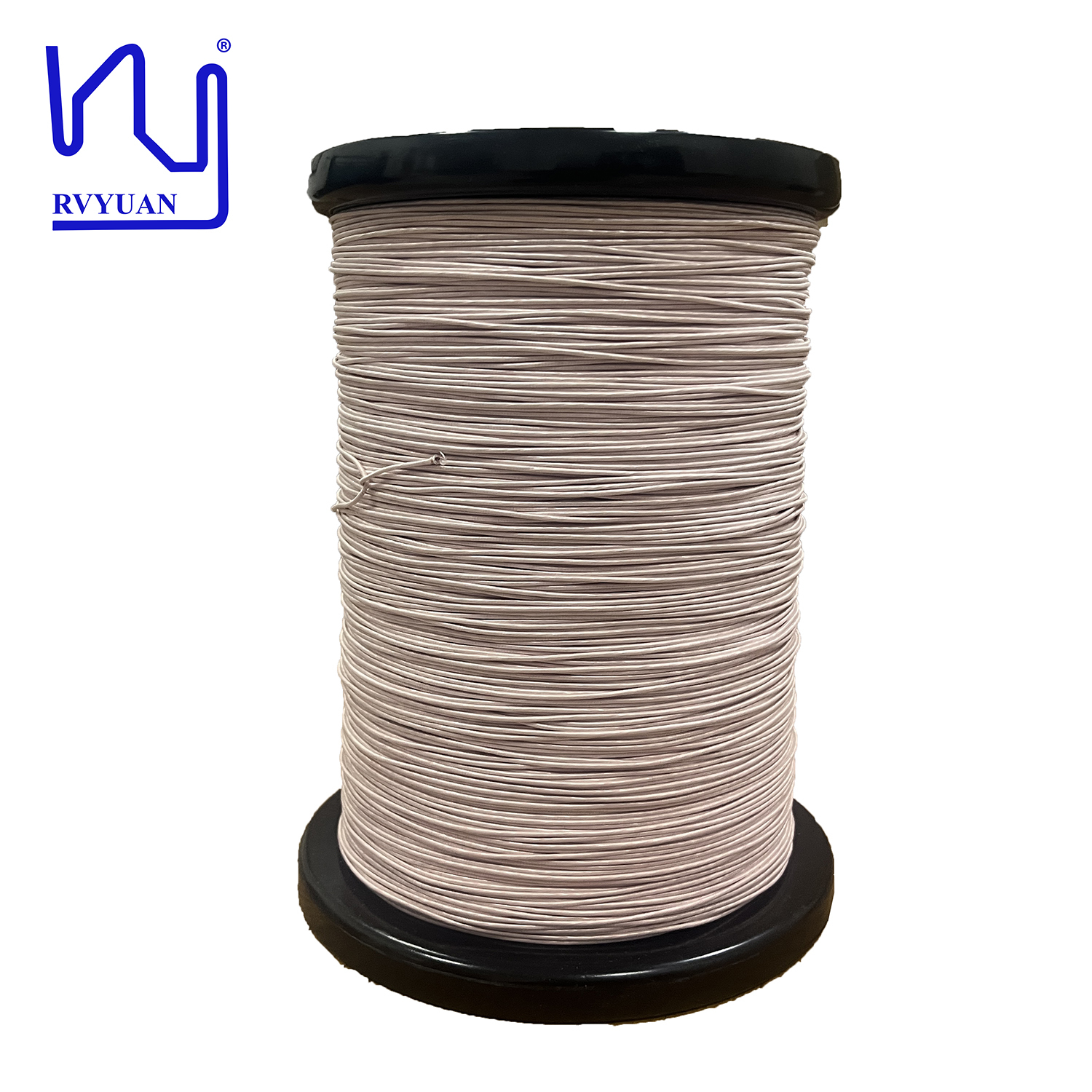

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Numéro de modèle:	Ustc

Quantité de commande min:	10 kg
Prix:	negotiable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	2-15 jours de travail
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	Satisfaire votre demande

meilleur prix Contactez

Détail Infomation

Diamètre:	0,1 mm	Température:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conducteur:	Cuivre
Volets:	100	Tension de panne:	Min.1100
Matériau de couverture:	nylon	Nom de produit:	Fil de Litz en cuivre recouvert de soie émaillée, haute température, USTC, 100/0,1mm
Mot clé:	Fil de Litz en cuivre recouvert de soie émaillée, haute température, USTC, 100/0,1mm
Mettre en évidence:	high temperature enameled litz wire , silk covered copper litz wire , high frequency ustc litz wire

Description de produit

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.

Mechanical and Physical Advantages

The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!
