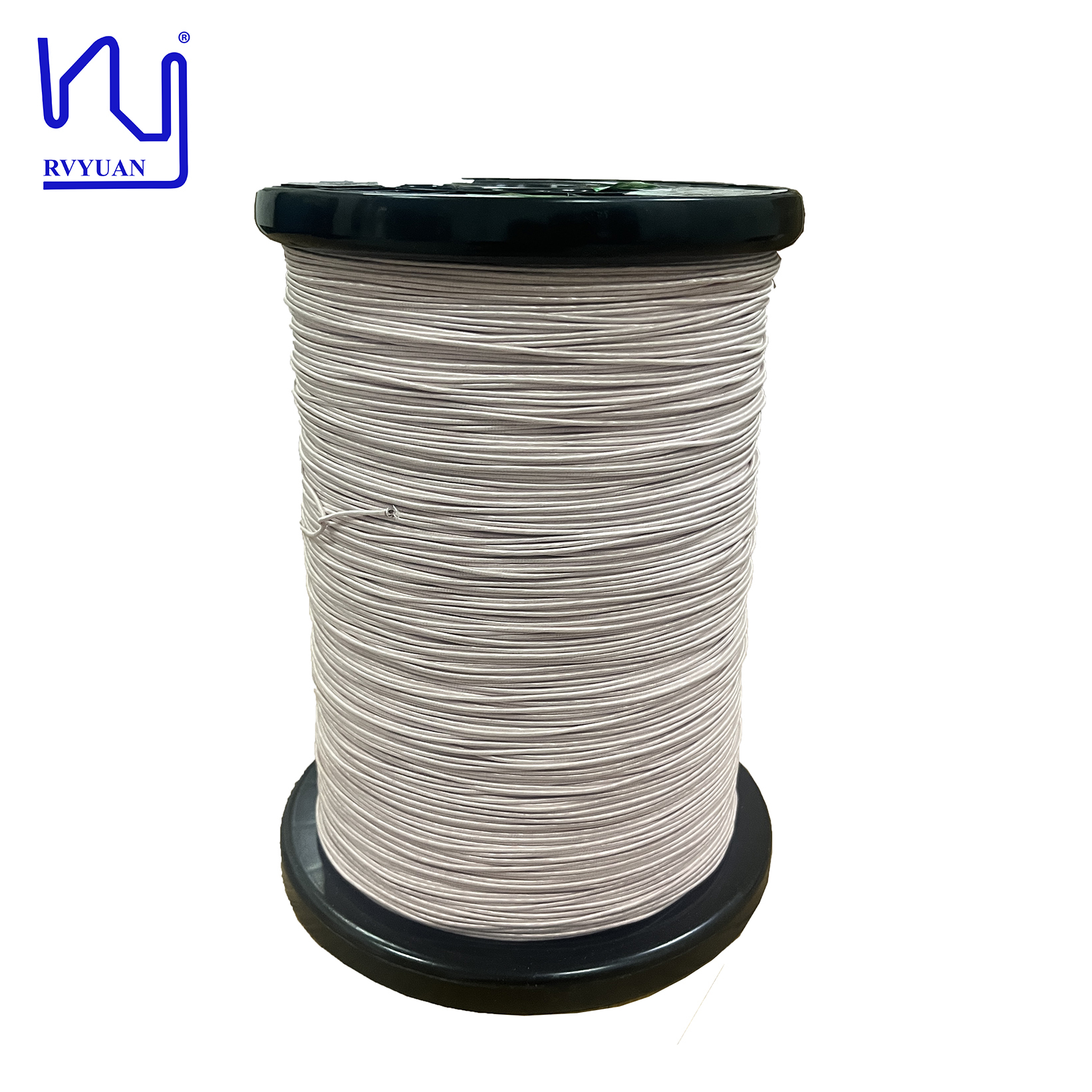

Name: Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Ustc
Price: 24.06 USD
Availability: InStock

Détail Infomation

Diamètre:	0,1 mm	Température:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conducteur:	Cuivre
Volets:	100	Tension de panne:	Min.1100
Matériau de couverture:	nylon	Nom de produit:	Fil de Litz recouvert de soie toronné personnalisé USTC UEW 0,1 mm pour bobines de charge sans fil
Mot clé:	Fil de Litz recouvert de soie toronné personnalisé USTC UEW 0,1 mm pour bobines de charge sans fil
Mettre en évidence:	0.1mm silk covered Litz wire , customized USTC Litz wire for wireless charging , stranded silk Litz wire with warranty

Description de produit

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Silk-covered Litz wire is used in applications that require high efficiency and low loss, particularly at high frequencies. Common applications include windings for transformers, motors, and high-frequency inductors, as well as in high-power lighting, video, and audio equipment. The silk covering adds insulation and durability while the Litz construction minimizes AC resistance.

Applications

Transformers and Motors: Used for windings in transformers and motors where efficiency is critical.
High-frequency electronics: Suitable for high-frequency applications such as RF transformers and transducers.
Inductors: Used in high-frequency and antenna inductors.
Audio and Video Equipment: Utilized in high-fidelity audio systems and other video equipment.
Industrial and Scientific Equipment: Found in high-power lighting systems, ultrasonic equipment, and inductive heating systems.
Automotive and Aerospace: Used in electronic components for these industries.

Why It's Used

Efficiency: The Litz construction minimizes skin and proximity effects, reducing resistance and energy loss.
Insulation: The silk cover provides an extra layer of electrical insulation and mechanical protection.
Performance: It improves the "Q" value and overall performance in high-frequency circuits.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!

Produit Tag:

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Numéro de modèle:	Ustc

Quantité de commande min:	10 kg
Prix:	negotiable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	2-15 jours de travail
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	Satisfaire votre demande
