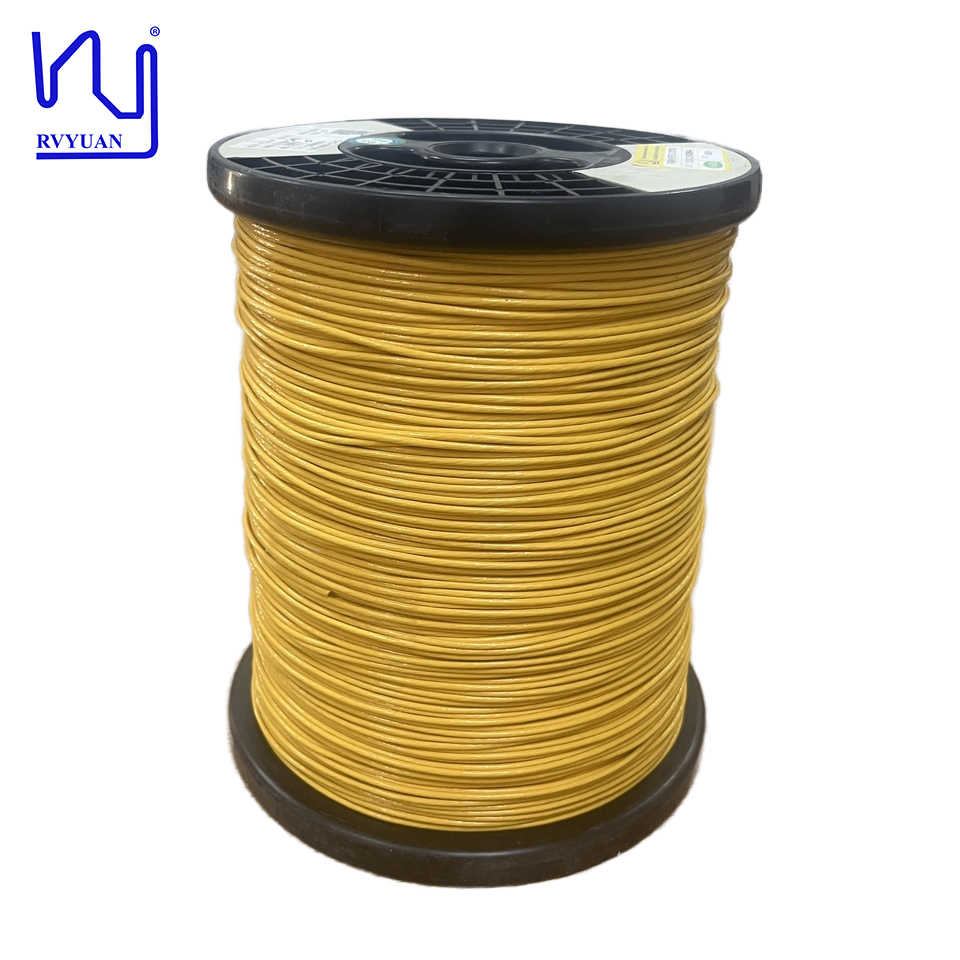

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
Informations de base
Lieu d'origine: CHINE
Nom de marque: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Numéro de modèle: Ustc
Quantité de commande min: 10 kg
Prix: negotiable
Détails d'emballage: Bobine avec carton
Délai de livraison: 2-15 jours de travail
Conditions de paiement: T / t / paypal
Capacité d'approvisionnement: Satisfaire votre demande
meilleur prix Contactez
Détail Infomation
Diamètre: 0,1 mm Température: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conducteur: Cuivre
Volets: 100 Tension de panne: Min.1100
Matériau de couverture: nylon Nom de produit: Fil de cuivre Litz recouvert de soie émaillée par fil haute fréquence USTC de 0,1 mm
Mot clé: Fil de cuivre Litz recouvert de soie émaillée par fil haute fréquence USTC de 0,1 mm
Mettre en évidence:

high frequency magnet litz wire

,

ETFE FEP PFA litz wire

,

twisted silk covered copper wire

Description de produit

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
ETFE extruded litz wire is a type of electrical cable that combines a bundle of individually insulated strands (litz wire) with an outer protective layer of extruded Ethylene Tetrafluoroethylene (ETFE). This construction is designed to reduce AC losses at high frequencies, while the durable ETFE coating provides excellent thermal, chemical, and mechanical resistance for use in demanding applications like wireless charging and induction heating.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!

Produit Tag:

individu collant le toron mince,

toron mince émaux,

toron mince de 40 A.W.G.
