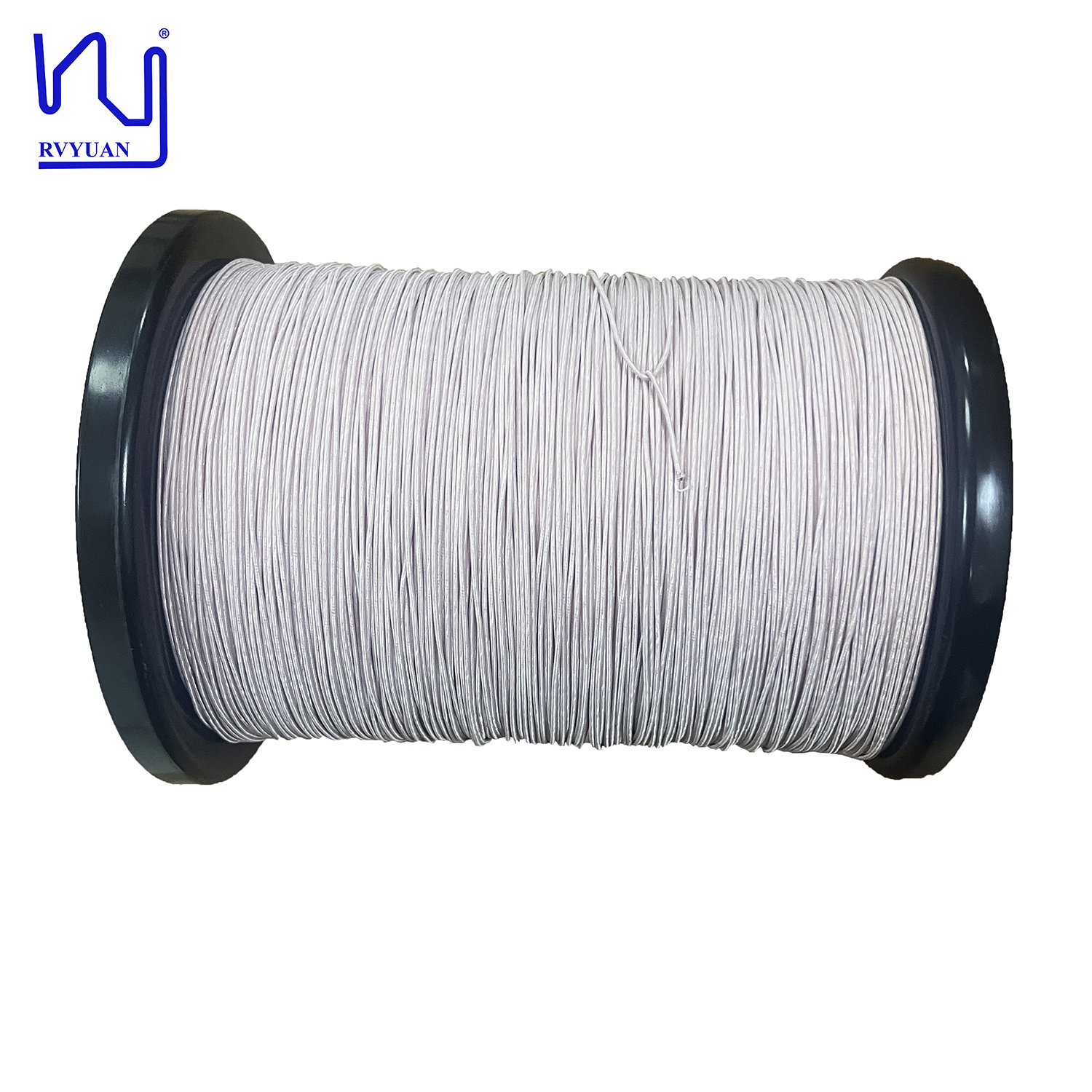

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Numéro de modèle:	Ustc

Quantité de commande min:	10 kg
Prix:	negotiable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	2-15 jours de travail
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	Satisfaire votre demande

meilleur prix Contactez

Détail Infomation

Diamètre:	0,1 mm	Température:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conducteur:	Cuivre
Volets:	100	Tension de panne:	Min.1100
Matériau de couverture:	nylon	Nom de produit:	Fil de Litz en cuivre recouvert de soie, fil magnétique émaillé à haute fréquence, 0.03mm 0.05mm 0.0
Mot clé:	Fil de Litz en cuivre recouvert de soie, fil magnétique émaillé à haute fréquence, 0.03mm 0.05mm 0.0
Mettre en évidence:	enameled magnet wire silk covered , high frequency litz wire , copper litz wire with warranty

Description de produit

0.03mm 0.05mm 0.08mm 0.1mm 0.2mm High Frequency Wire Enameled Magnet Wire Silk Covered Copper Litz Wire

We can produce polyurethane-enameled copper wire with single strand diameters ranging from 0.03 mm to 0.5 mm and can fully customize it to your specific needs. In addition to this configuration, we can also produce single-strand conductors with up to 12,700 strands, depending on the appropriate strand size.

If you have specific design and customization requirements, please let us know and our technical team will be happy to assist you. The minimum order quantity for this type of conductor is typically 20 kg, but we also offer custom orders in smaller quantities to accommodate various project sizes.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!
