Détail Infomation

Type de conteneur:	solide	Matériel:	Cuivre
Forme:	Rectangulaire	Largeur:	2,0 mm
Taper:	Isolé	Certificats:	Pour les appareils de traitement de l'air2008
Nom de produit:	Isolation faite sur commande de polyetheretherketone de fil de PEEK 2.0mm 4.0mm 5.0mm	Épaisseur:	1,4 mm
Mettre en évidence:	PEEK insulated copper wire , custom PEEK wire 2.0mm , rectangular copper wire 5.0mm

Description de produit

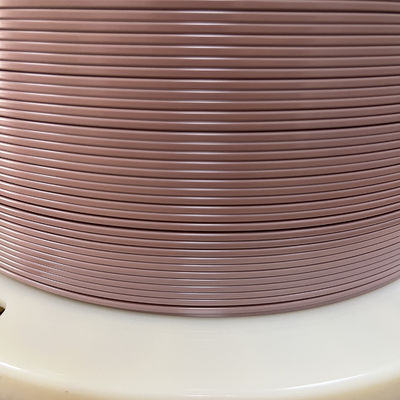

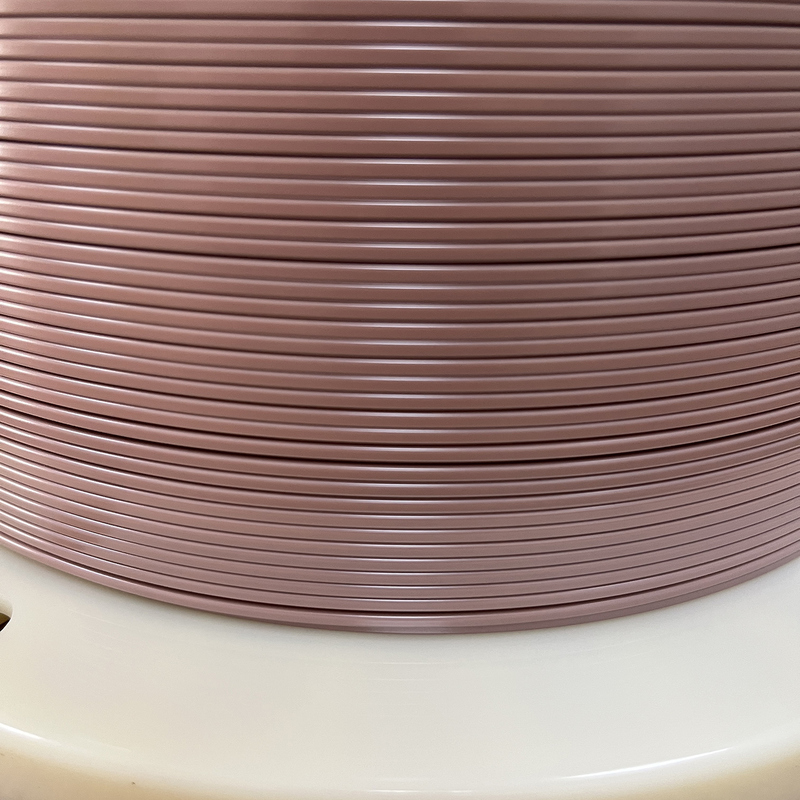

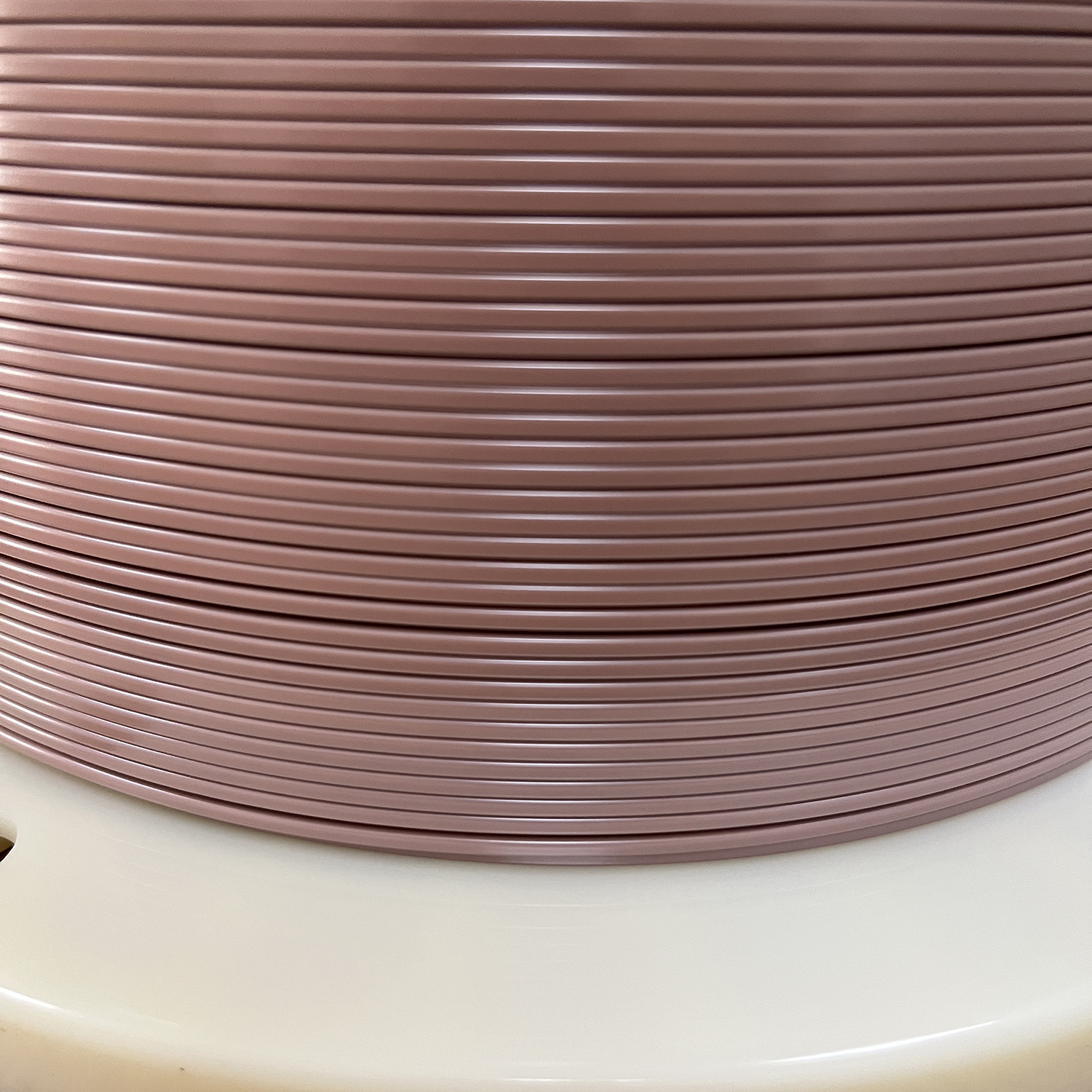

Custom PEEK wire Polyetheretherketone Insulation 2.0mm 4.0mm 5.0mm

PERFORMANCE ADVANTAGES OF PEEK WIRE

PEEK filament offers exceptional high-temperature resistance, maintaining mechanical integrity at temperatures up to 260°C. It exhibits strong chemical resistance to a wide range of acids and organic solvents, and is both strong and abrasion-resistant. Furthermore, its excellent electrical insulation properties over a wide temperature range, low outgassing, and robust radiation resistance make it suitable for environments exposed to radiation. Its biocompatibility further solidifies its position as the material of choice for medical implants.

Ref. -	Item	Specification	Measurement data	Measure equipment
No.	W607010 2A250904	W607010 2B250904
1	Copper width	1.980-2.020mm	2.004 \| 2.005	Mircometer
2	Copper thickness	1.380-1.420mm	1.400 \| 1.399	Mircometer
3	Overall width	2.300-2.360 mm	2.324 \| 2.321	Mircometer
4	Overall thickness	1.700-1.760 mm	1.732 \| 1.731	Mircometer
5	Copper radius	0.350-0.450mm	0.375 \| 0.408	Microscope
6	Copper radius		0.385 \| 0.412	Microscope
7	Copper radius		0.399 \| 0.411	Microscope
8	Copper radius		0.404 \| 0.407	Microscope
9	Insulation layer thickness	0.145-0.185mm	0.170 \| 0.159	Microscope
10	Insulation layer thickness		0.162 \| 0.155	Microscope
11	Insulation layer thickness		0.155 \| 0.161	Microscope
12	Insulation layer thickness		0.167 \| 0.165	Microscope
13	Insulation layer thickness		0.152 \| 0.155	Microscope
14	Insulation layer thickness		0.161 \| 0.159	Microscope
15	Insulation layer thickness of radius	0.145-0.185mm	0.156 \| 0.158	Microscope
16	Insulation layer thickness of radius		0.159 \| 0.155	Microscope
17	Insulation layer thickness of radius		0.154 \| 0.159	Microscope
18	Insulation layer thickness of radius		0.160 \| 0.165	Microscope
19	Copper	T1	OK	Material certificate
20	Coating/Temperature grade	240℃	OK	Material certificate
21	Elongation	≥40%	46 \| 48	Tensile tester
22	Spring back angle	/	5.186 \| 5.098	Auto spring back test
23	Flexibility	After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer.	OK \| OK	Visual
24	Adhesion	≤3.00mm	0.394 \| 0.671	Tensile tester&Microscope
25	20℃ Conductor resistance	≤6.673 Ω/km	6.350 \| 6.360	Conductor resistance tester
26	BDV	≥12000 V	22010 \| 21170	Auto voltage tester
27	PDIV	≥1300 RMS (25℃,50V/S,50Hz,100Pc)	1425 \| 1429	PDIV tester
28	Heat shock	After baking at 240℃ for 30 minutes, the insulation layer should have no cracks.	OK	Oven
29	Defect inspection	High voltage Pinhole: DC 3000V, 16uA	0 \| 0	On-line inspection system
		Parricle: Height＞0.100mm need to be marked	0 \| 0
		Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked	0 \| 2
30	Spool&Weight	Sample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kg	P-30 \| P-30	Visual

Produit Tag:

Lieu d'origine:	CHINE
Nom de marque:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Numéro de modèle:	Jeter un coup d'œil

Quantité de commande min:	50 kg
Prix:	negotiable
Détails d'emballage:	CARTON
Délai de livraison:	7 jours
Conditions de paiement:	T / t
Capacité d'approvisionnement:	100kg/semaine
