| Place of Origin: | China |
|---|---|
| Nom de marque: | RVYUAN |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | 10KG |
| Prix: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T/Paypal |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Width: | 3.0mm |
|---|---|---|---|
| Thickness: | 0.2mm | Applications: | Motor, transformer |

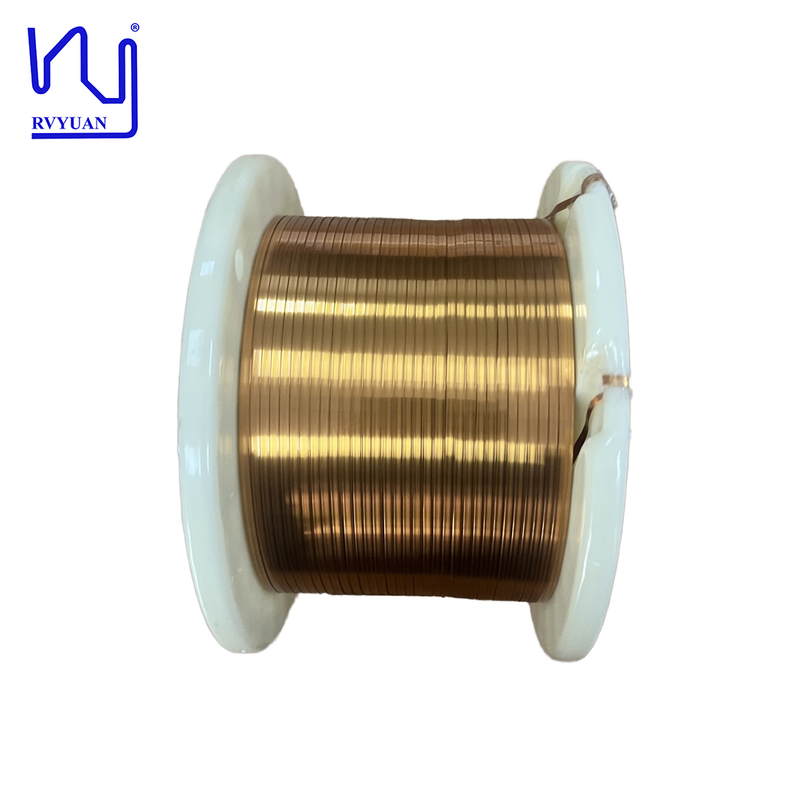

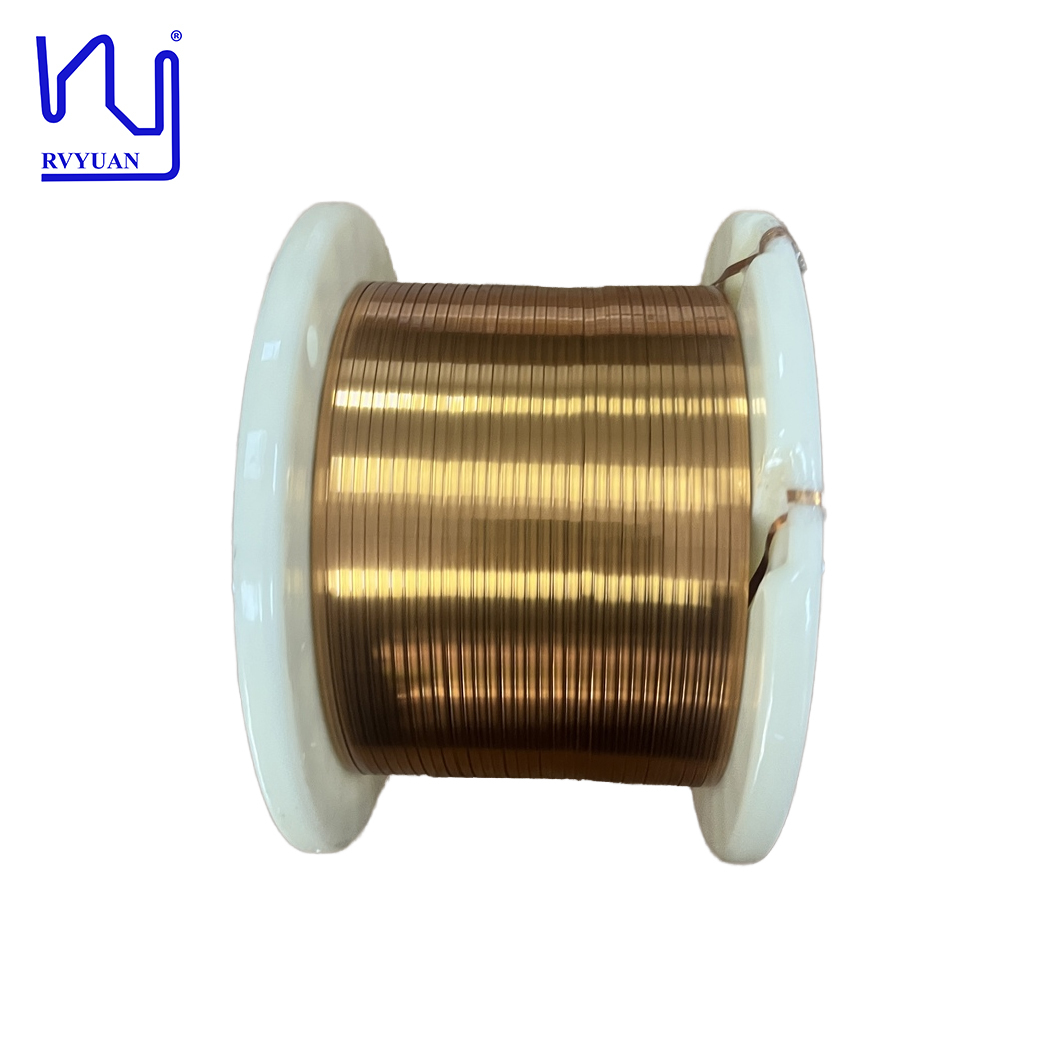

| Thermal Grade: | 180 | Key word: | Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor |
| Enamel coating: | UEW | ||
| Mettre en évidence: | fils de bobinage en cuivre émaillés 3 mm,fils de cuivre isolés plats rectangulaires,fils de cuivre émaillés par inducteur |
||
| Article | Dimension du conducteur | Épaisseur de la couche d'isolation unilatérale | Dimension globale | Tension de claquage (kv) | |||
|---|---|---|---|---|---|---|---|
| Épaisseur (mm) | Largeur (mm) | Épaisseur (mm) | Largeur (mm) | Épaisseur (mm) | Largeur (mm) | ||
| Unité | mm | mm | mm | mm | mm | mm | kv |
| MOYENNE SPEC | 0.300 | 3.000 | 0.025 | 0.025 | / | / | |
| Max | 0.309 | 3.060 | 0.040 | 0.040 | 0.35 | 3.1 | |
| Min | 0.191 | 2.940 | 0.010 | 0.010 | / | / | 0.700 |
| No. 1 | 0.301 | 2.998 | 0.020 | 0.029 | 3.341 | 3.045 | 1.320 |
| No. 2 | 1.085 | ||||||
| No. 3 | 1.030 | ||||||
| No. 4 | 0.960 | ||||||
| No. 5 | 1.152 | ||||||
| Moy | 0.301 | 2.998 | 0.020 | 0.029 | 0.341 | 3.045 | 1.109 |
| Résultat | OK | OK | OK | OK | OK | OK | OK |
