MW 84-C 0.2X1.0mm Polyamideimide 220C Enameled Flat Copper Wire

Informations de base

Lieu d'origine:	Chine
Nom de marque:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Numéro de modèle:	Classe 220

Quantité de commande min:	10 kg ou plus
Prix:	negotiable
Détails d'emballage:	Couloir avec carton
Délai de livraison:	2 à 15 jours ouvrables
Conditions de paiement:	T/T/PAYPAL
Capacité d'approvisionnement:	Satisfaire votre demande

meilleur prix Contactez

Détail Infomation

Shape:	Rectangular	Conductor Dimension (Width):	1.0mm
Unilateral Insulation Layer Thickness (Width):	0.2mm	Applications:	Motor, transformer
Thermal Grade:	220	Key word:	MW 84-C 0.2X1.0mm Polyamideimide 220℃ Enameled Coated Flat Copper Wire for Wound Coils
Thermal rating:	220	Enamel coating:	AIW
Mettre en évidence:	polyamideimide enameled flat copper wire , 220C rectangular copper wire , 0.2X1.0mm enameled copper wire

Description de produit

MW 84-C 0.2X1.0mm Polyamideimide 220℃ Enameled Coated Flat Copper Wire

Product Specifications

Attribute	Value
Shape	Rectangular
Conductor Dimension (Width)	1.0mm
Unilateral Insulation Layer Thickness (Width)	0.2mm
Applications	Motor, transformer
Thermal Grade	220
Thermal Rating	220℃
Enamel Coating	AIW

Product Description

MW 84-C 0.2X1.0mm Polyamideimide 220℃ enameled coated flat copper wire is designed for wound coils with superior performance characteristics.

Key Features

Applications

Ideal for various industries including electronics, automotive, and digital applications to enhance product efficiency and performance.

Technical Specifications

Item	Conductor dimension		Insulation thickness		Overall dimension		Dielectric breakdown voltage (kV)	Conductor resistance (Ω/km 20℃)
Item	T (mm)	W (mm)	T (mm)	W (mm)	T (mm)	W (mm)	Dielectric breakdown voltage (kV)	Conductor resistance (Ω/km 20℃)
SPEC AVE	0.200	1.000	0.025	0.0025	/	/
Max	0.209	1.060	0.040	0.004	0.250	1.100		96.380
Min	0.191	0.940	0.010	0.010			0.700

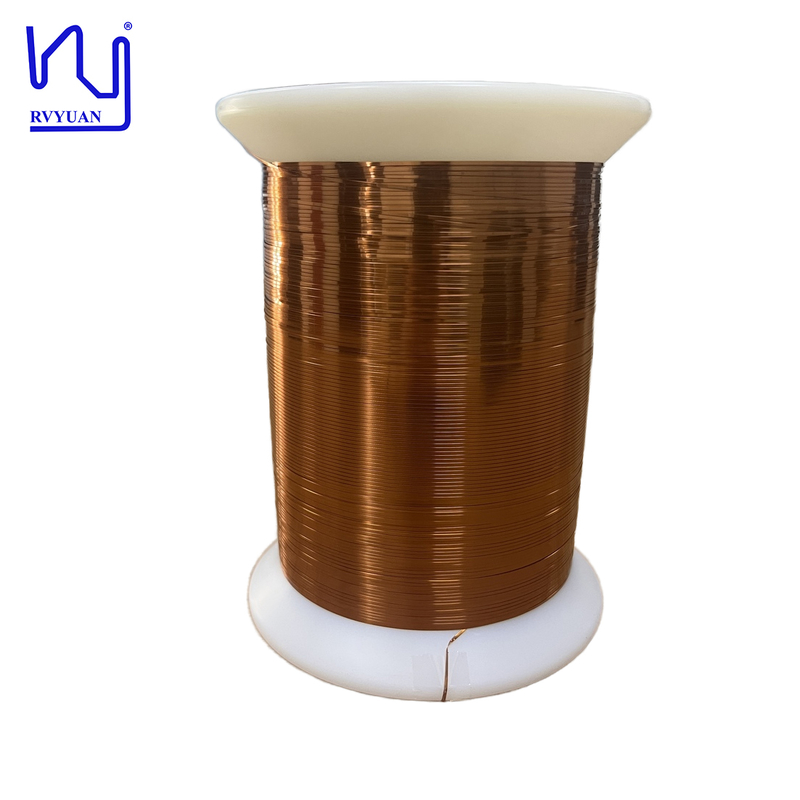

Product Image
