Détail Infomation

nom:	Fil de Litz Mylar scotché haute fréquence et température de 0,4 mm	Certification:	ISO9001/ISO14001/UL/SGS
Diamètre:	0,4 mm	Conducteur:	Cuivre
Isolation:	Film de pi	Température nominale:	180
Mot clé:	Fil de Litz Mylar scotché haute fréquence et température de 0,4 mm	Nombre de brins:	120
Mettre en évidence:	0.4mm high frequency Mylar Litz wire , temperature taped copper Litz wire , Mylar insulated high frequency wire

Description de produit

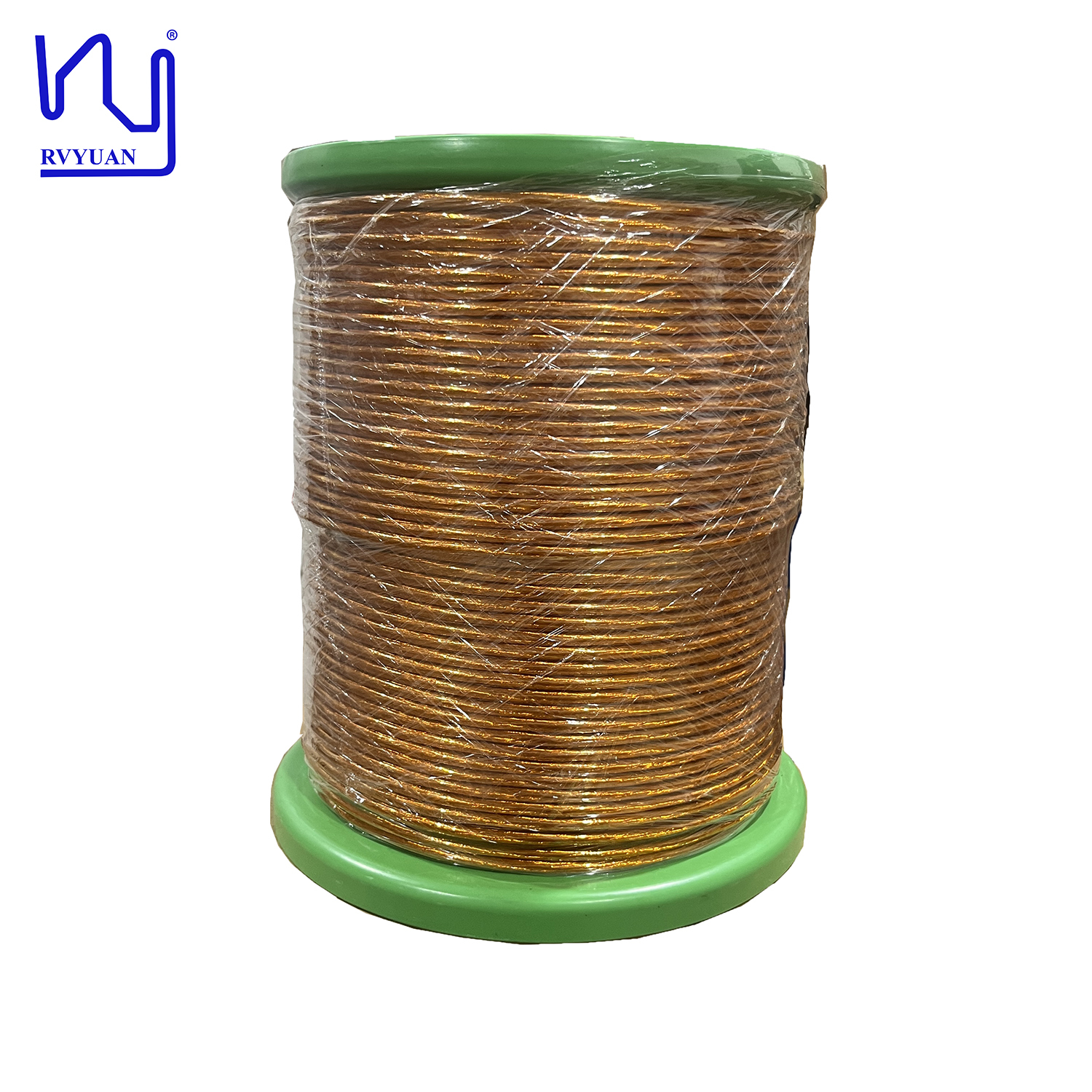

0.4mm High Frequency and Temperature Taped Mylar Litz Wire

Taped litz wire refers to litz wire that is wrapped tape, typically to enhance its performance and durability in various applications. Litz wire itself is made up of many thin strands of enameled copper wire twisted together. This design helps reduce skin effect and proximity effect losses in high-frequency applications, making it ideal for use in transformers, inductors, and other electromagnetic devices.

Benefits of Taped Litz Wire

Insulation: Taping provides additional insulation between the individual strands of wire, which can help prevent short circuits and improve the overall safety of the wire.
Mechanical Protection: The tape can protect the wire from physical damage, abrasion, and environmental factors, extending the lifespan of the wire in harsh conditions.
Ease of Handling: Taped litz wire is easier to handle and work with during assembly, as the tape helps keep the strands together and organized.
Reduced Stray Capacitance: In some cases, the tape can help reduce stray capacitance between the strands, which can be beneficial in high-frequency applications.
Improved Performance: By maintaining the integrity of the litz structure, taping can help ensure that the wire performs optimally, especially in applications where minimizing losses is critical.

Overall, taping litz wire enhances its functionality and reliability in various electrical and electronic applications.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

Product Images

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Numéro de modèle:	fil attaché du ruban adhésif de litz

Quantité de commande min:	20 kg
Prix:	negotiable
Détails d'emballage:	Bobine avec carton
Délai de livraison:	2-15 jours de travail
Conditions de paiement:	Négociation
Capacité d'approvisionnement:	Satisfaire votre demande
