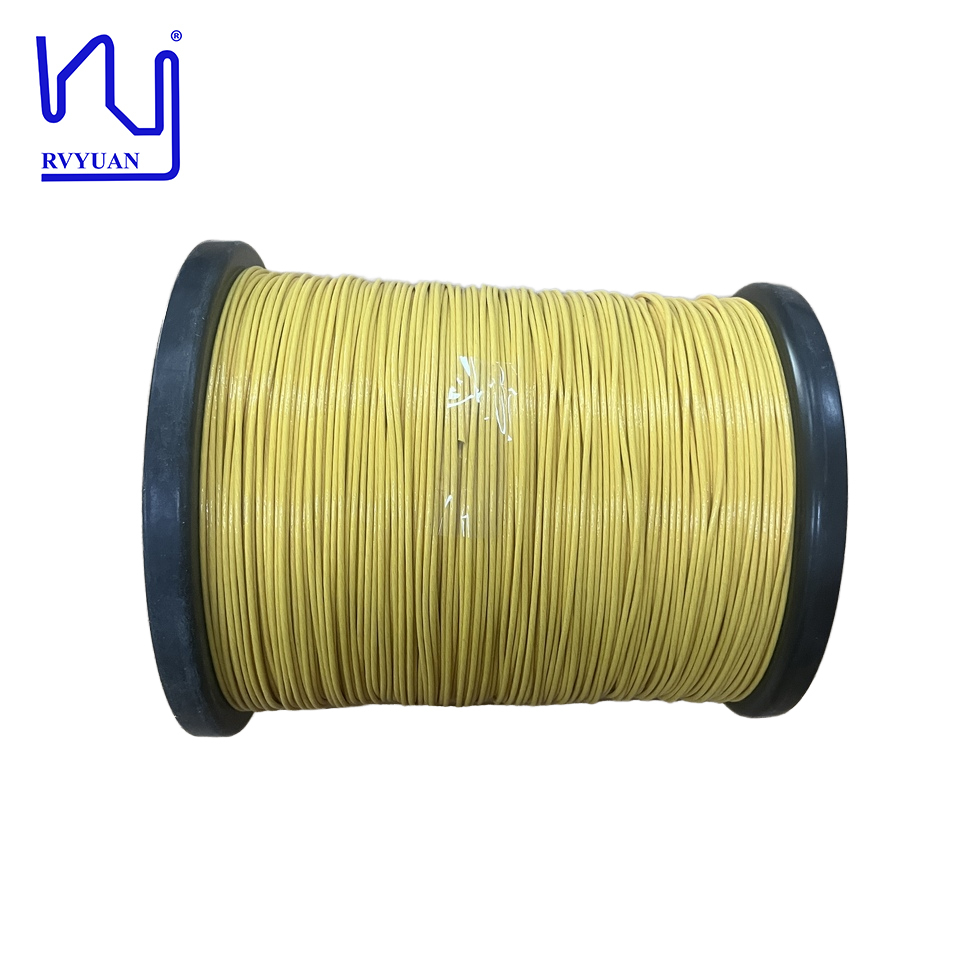

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Numéro de modèle:	0,1 mm

Quantité de commande min:	1000 mètres
Prix:	negotiable
Détails d'emballage:	Carton
Délai de livraison:	7 jours
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	1ton/month

meilleur prix Contactez

Détail Infomation

Nom de produit:	UL Sécurité de 0,1 mmx250 brins tiw litz fil etfe revêtement extrudé	Classification thermique:	155
Diamètre de fil unique:	0,1 mm	Conducteur:	Cuivre
Nombre de brins:	250	Insistant:	ETFE
Mettre en évidence:	UL safety Litz wire ETFE coating , TIW Litz wire 250 strands , ETFE extruded triple insulated wire

Description de produit

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.

Product Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
