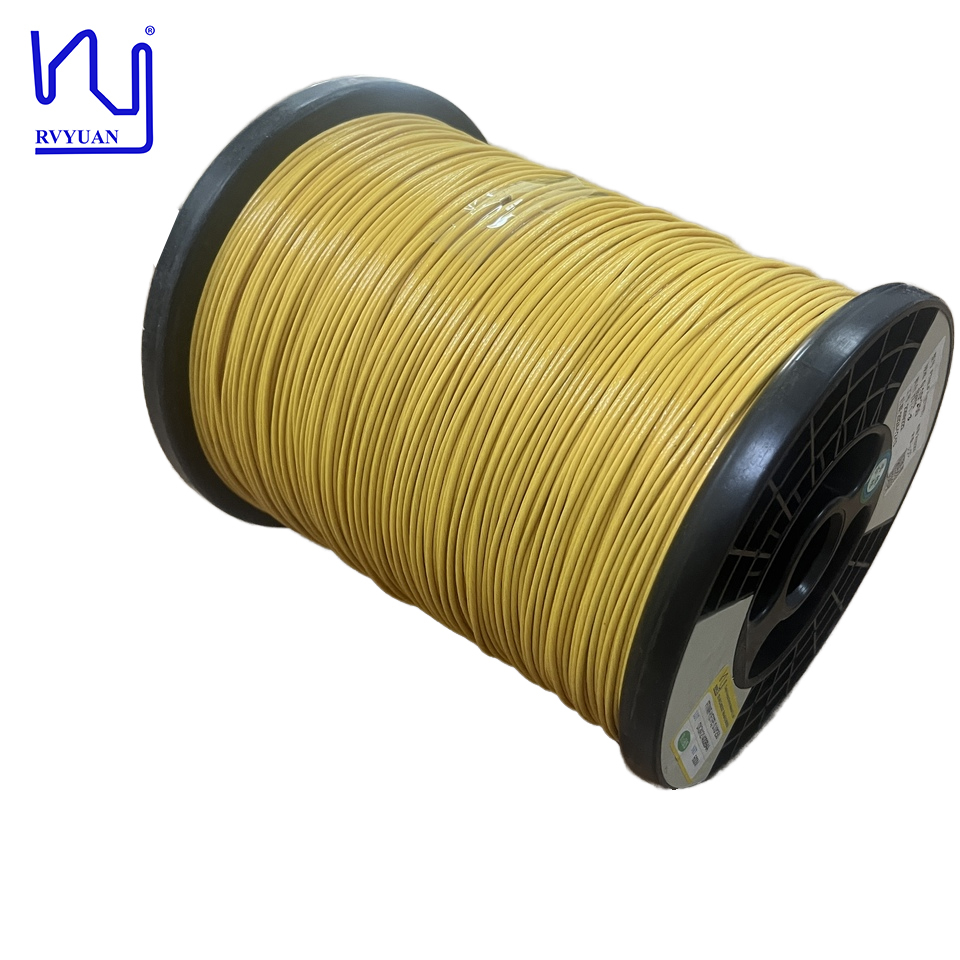

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Numéro de modèle:	0,1 mm

Quantité de commande min:	1000 mètres
Prix:	negotiable
Détails d'emballage:	Carton
Délai de livraison:	7 jours
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	1ton/month

meilleur prix Contactez

Détail Infomation

Nom de produit:	Triple fil isolé 155 ℃ 0,1 mm * 250 Fil Litz en cuivre ETFE / PTFE pour le transformateur	Classification thermique:	155
Diamètre de fil unique:	0,1 mm	Conducteur:	Cuivre
Nombre de brins:	250	Insistant:	ETFE
Mettre en évidence:	Triple insulated ETFE PTFE wire , 155℃ high temperature Litz wire , 0.1mm transformer copper wire

Description de produit

Triple insulated wire 155℃ 0.1mm*250 ETFE/PTFE Copper Litz Wire For Transformer

The conductors are insulated with ETFE (ethylene tetrafluoroethylene), a high-performance polymer known for its excellent heat and chemical resistance. ETFE is rated for temperatures up to 155°C, ensuring the conductors perform effectively in a variety of harsh conditions. The thinner walls of the winding wires allow for efficient use of space, making them particularly suitable for primary applications in multi-conductor configurations.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Appearance	Smooth & Clean	OK	OK	OK	OK
Diameter of single wire	0.10±0.003mm	0.100	0.100	0.099	OK
Thickness of Enamel	≥ 0.004mm	0.006	0.007	0.008	OK
OD of single wire	0.105-0.109mm	0.106	0.107	0.107	OK
Twist Pitch	S28±2	OK	OK	OK	OK
Insulation Thickness	Min.0.1mm	0.12	0.12	0.12	OK
OD of Litz Wire	Max. 2.2mm	2.16	2.16	2.12	OK
DC Resistance	Max.9.81 Ω/km	9.1	9.06	9.15	OK
Elongation	≥ 13 %	23.1	21.9	22.4	OK
Breakdown Voltage	≥ 5K V	8.72	9.12	8.76	OK
Pin Hole	0 hole/5m	0	0	0	OK

We have a professional team to provide technical support. Custom specifications available upon request.
