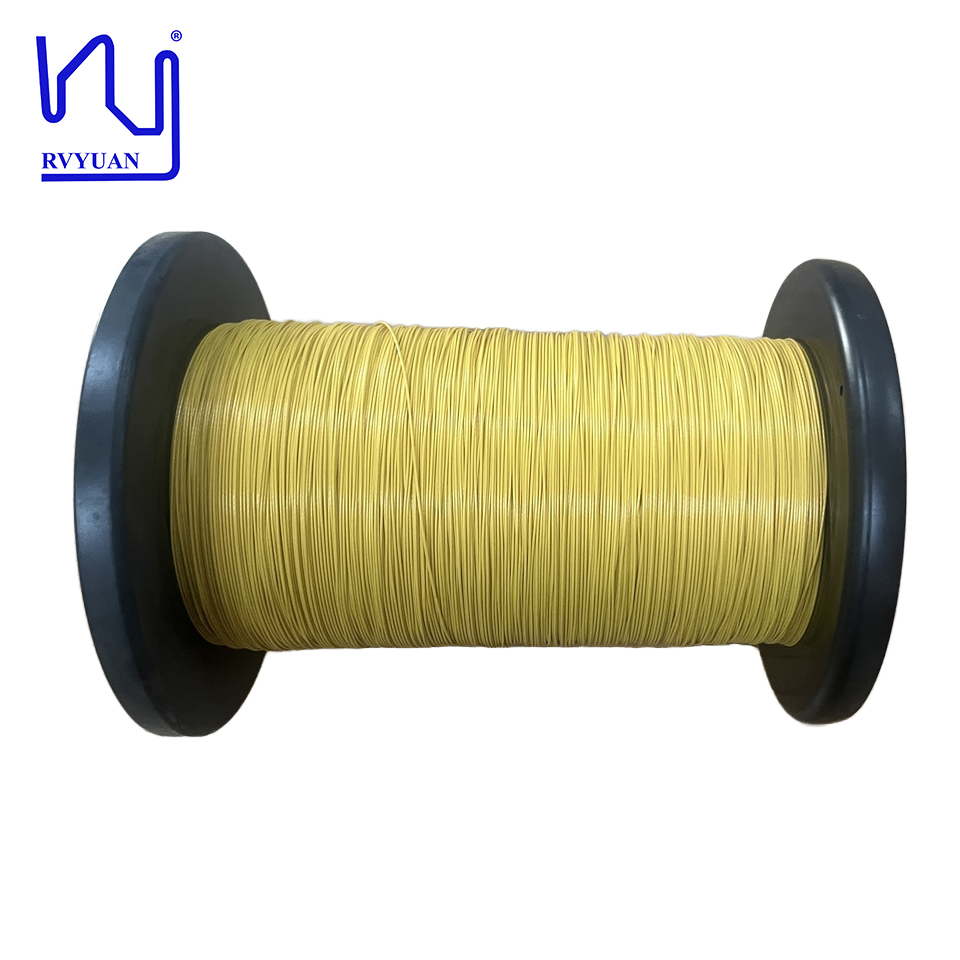

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Numéro de modèle:	0.24mm

Quantité de commande min:	1000 mètres
Prix:	negotiable
Détails d'emballage:	Carton
Délai de livraison:	7 jours
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	1ton/month

meilleur prix Contactez

Détail Infomation

Nom de produit:	Fil Litz extrudé ETFE personnalisé 0,24 mmx7 brins TIW pour le transformateur	Classification thermique:	155
Diamètre de fil unique:	0.24mm	Conducteur:	Cuivre
Nombre de brins:	7	Insistant:	ETFE
Mettre en évidence:	ETFE insulated copper litz wire , 0.24mm 7-strand litz wire , TIW stranded copper wire

Description de produit

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
