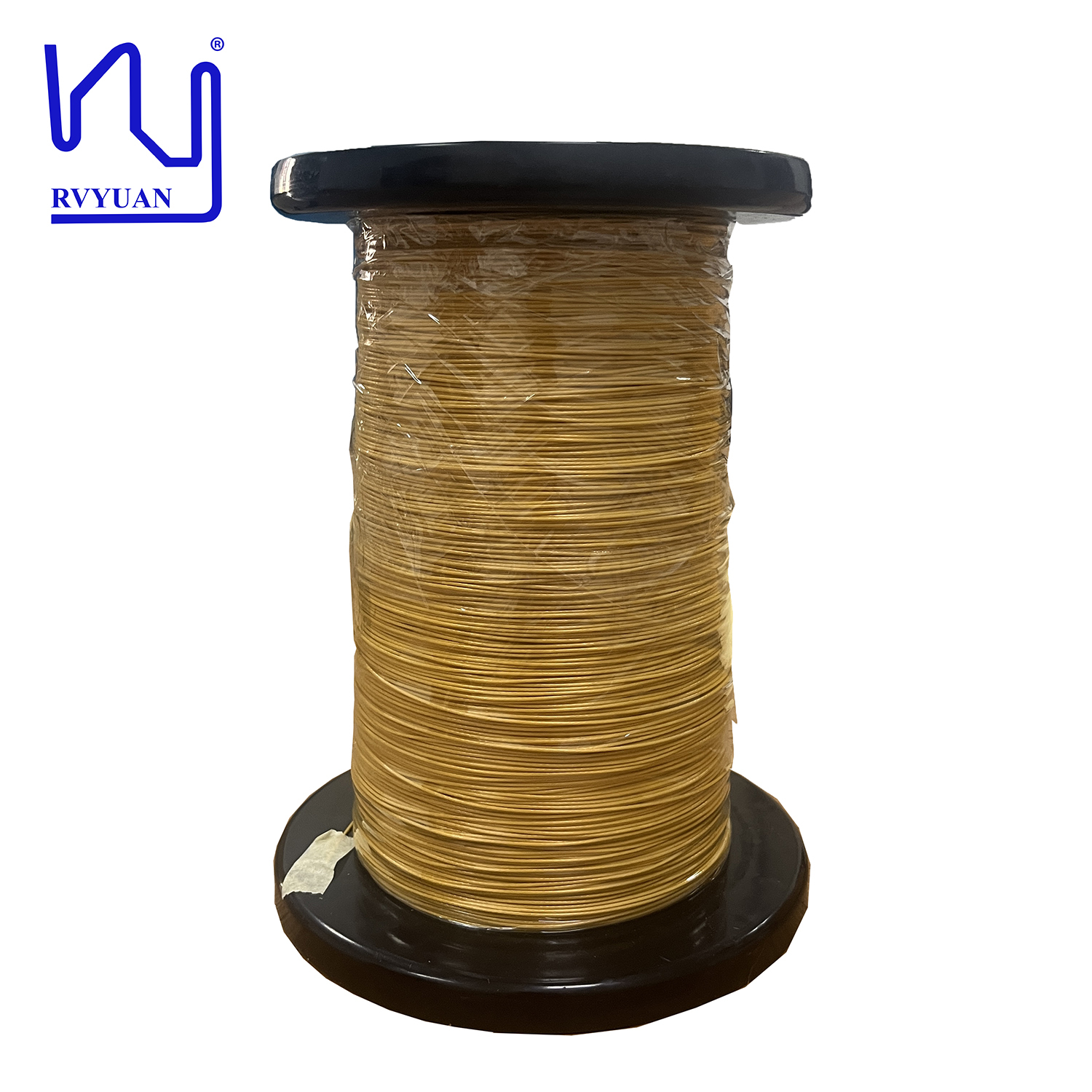

Custom ETFE Extruded Litz Wire 0.24mmx7 Strands TIW For Transformer

Informations de base

Lieu d'origine:	CHINE
Nom de marque:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Numéro de modèle:	0.24mm

Quantité de commande min:	1000 mètres
Prix:	negotiable
Détails d'emballage:	Carton
Délai de livraison:	7 jours
Conditions de paiement:	T / t / paypal
Capacité d'approvisionnement:	1ton/month

meilleur prix Contactez

Détail Infomation

Nom de produit:	Fil Litz extrudé ETFE personnalisé 0,24 mmx7 brins TIW pour le transformateur	Classification thermique:	155
Diamètre de fil unique:	0.24mm	Conducteur:	Cuivre
Nombre de brins:	7	Insistant:	ETFE
Mettre en évidence:	custom ETFE litz wire , 0.24mmx7 strands litz wire , transformer litz wire

Description de produit

Custom ETFE Extruded Litz Wire 0.24mmx7 Strands TIW For Transformer

The wire's outer layer is made of ETFE (ethylene tetrafluoroethylene) material through an advanced extrusion process, achieving a maximum outer diameter of 1.05 mm. One of the outstanding features of this extruded ETFE litz wire is its excellent voltage resistance, withstanding a breakdown voltage of up to 15,200V. This characteristic makes it particularly suitable for high-frequency transformers and other critical electrical equipment, ensuring reliable performance and safety in high-voltage applications.

Technical Specifications

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
