Product Name: | 0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid | Thermal rating: | 220 |
---|---|---|---|
Insulation Material: | AIW | Diameter: | 0.18mm |
Conductor material: | Copper | Key word: | 0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid |

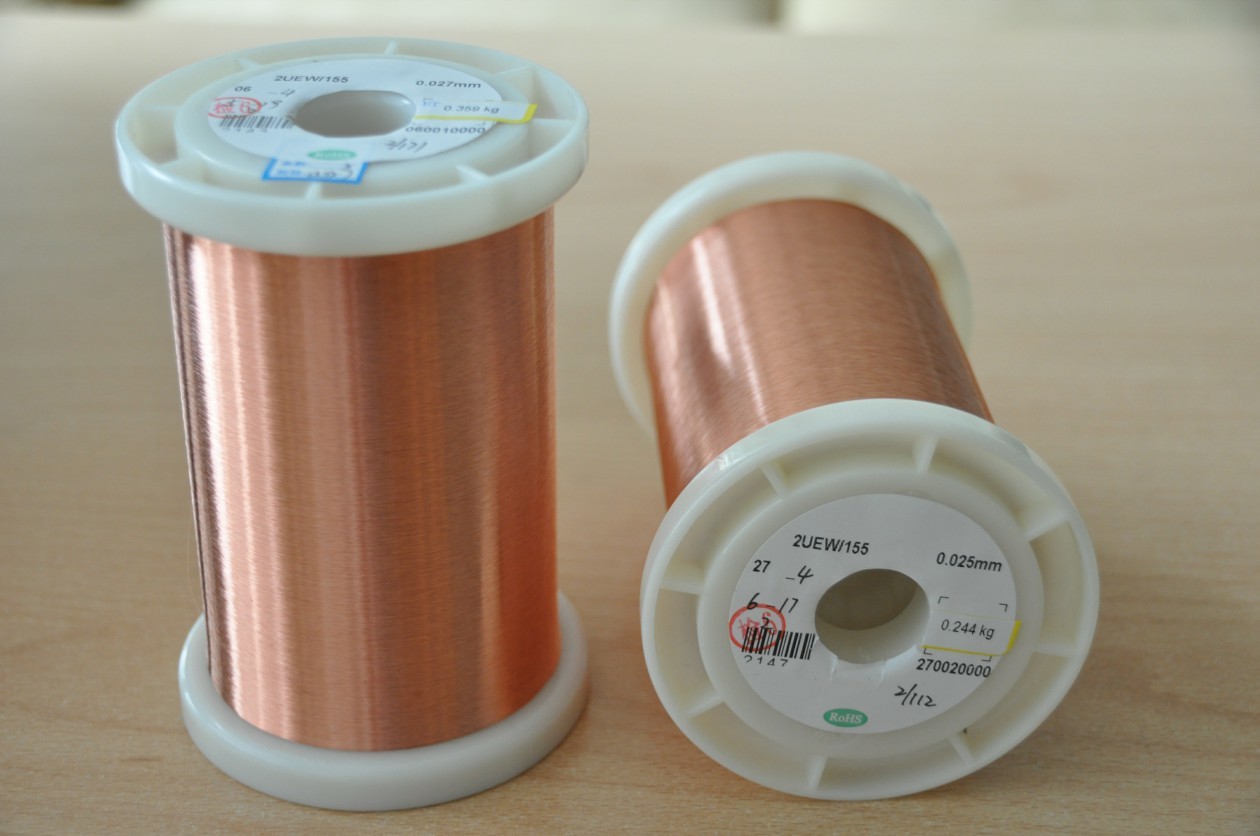

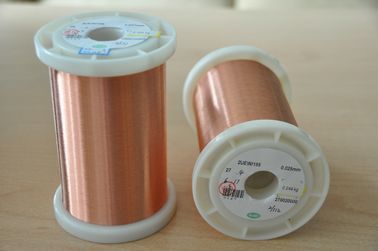

0.1mm- 1.3mm Enameled Copper Wire Winding Wire Copper Solid
Ideal for applications such as voice coil winding, this high temperature self-bonding wire is favored for its excellent conductivity and heat resistance. Its rugged construction ensures long life and reliability, making it ideal for high-performance devices. You can trust our wire to meet the needs of your most challenging projects.
Test Items | Requirements | Test Data | Result | ||
Min Sample |
Ave Sample |
Max Sample | |||
Conductor Diameter | 0.18mm ±0.003mm | 0.180 | 0.180 | 0.180 | OK |
Thickness of Insulation | ≥0.008mm | 0.019 | 0.020 | 0.020 | OK |
Basecoat dimensions Overall dimensions | Min.0.226 | 0.210 | 0.211 | 0.212 | OK |
Bonding film thickness | ≤ 0.004mm | 0.011 | 0.011 | 0.012 | OK |
DC Resistance | ≤ 715Ω/km | 679 | 680 | 681 | OK |
Elongation | ≥15% | 29 | 30 | 31 | OK |
Breakdown Voltage | ≥2600V | 4669 | OK | ||
Bonding Strength | Min.29.4 g | 50 | OK |
